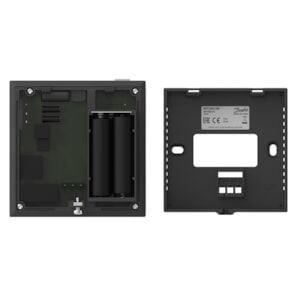

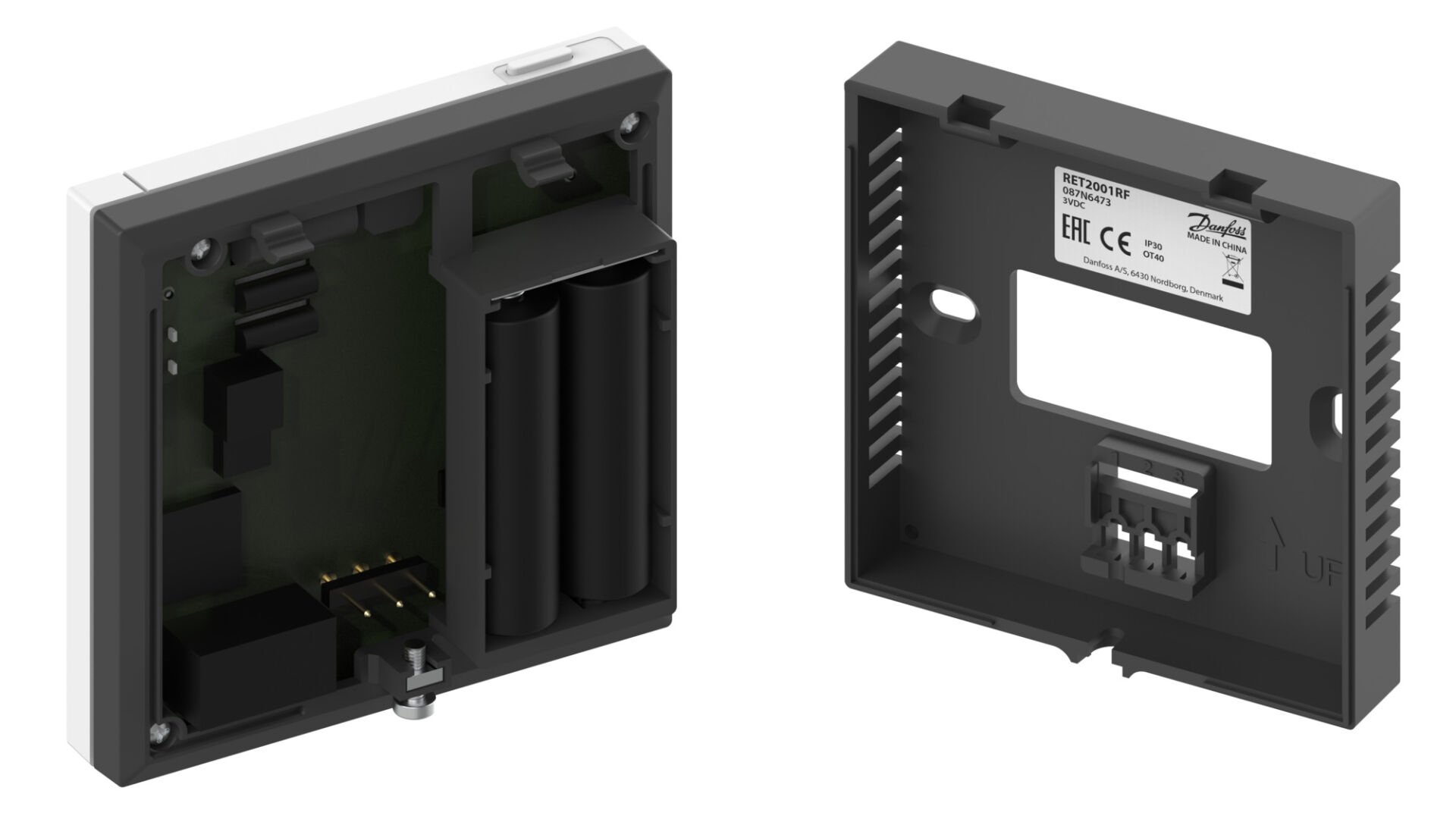

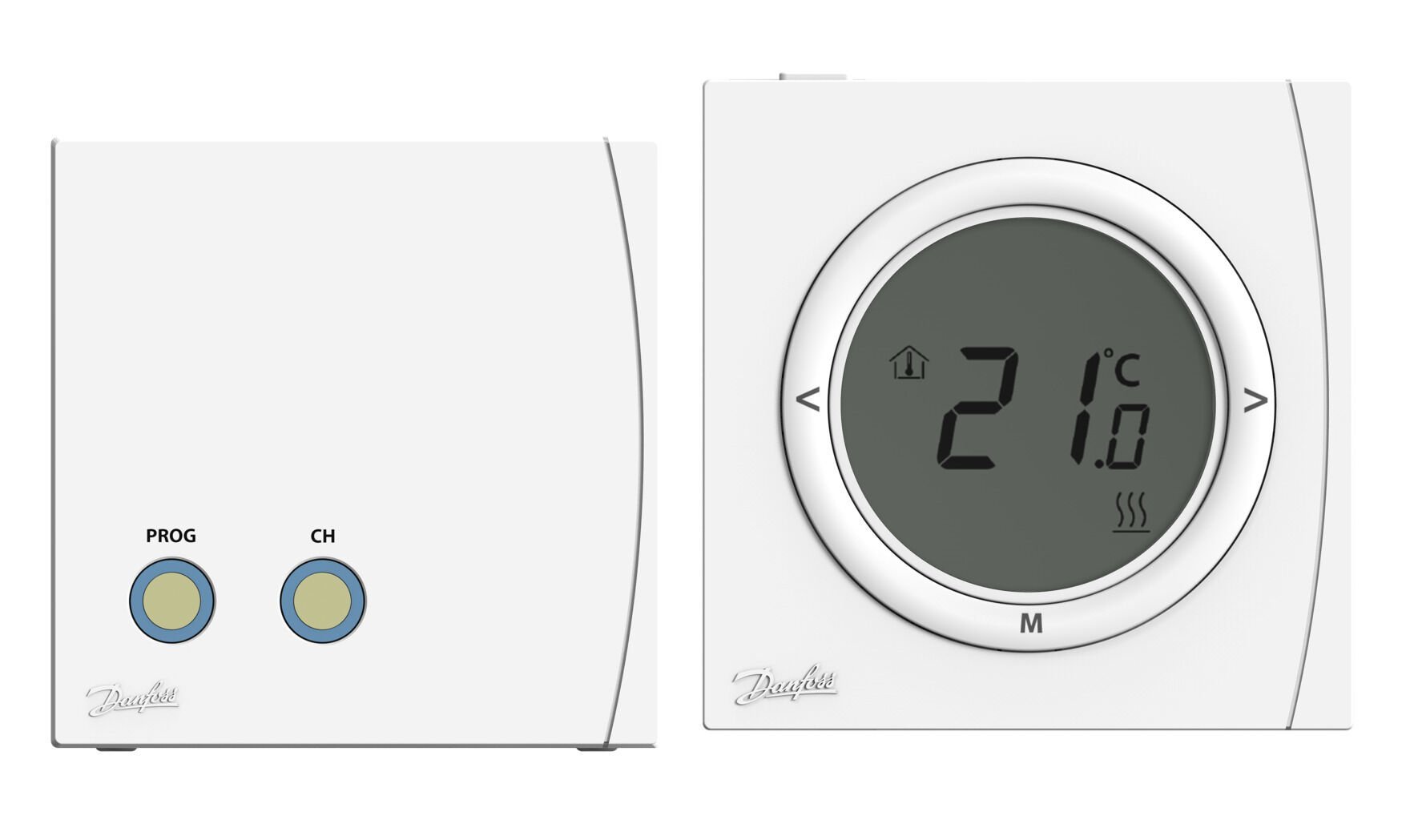

087N6477 RET2001RF + RX1-S V2, Termostat için piller + Alıcı için 230Vac, Dijital RF Termostatı
Kategori
Stok Kodu
087N6477
Product details
| Gross weight | 420 Gram |
| Net weight | 400 Gram |
| Volume | 1.36 Liter |
| EAN | 5715162419205 |
| Type | RET2001 |
| Product group | Room Thermostats, RET |
| 1 Primary battery SUM weight Kg | 0.044 |
| 1 Primary battery weight Kg | 0.022 |
| Ambient temperature [°C] [max] | 40 °C |
| Application | Room heating |
| Approval | CE UKCA |
| Back lit display | Yes |
| Backplate | Industry Standard Backplate for RX1-S V2 Receiver |
| Ball hardness test [°C] | 75 °C |
| Battery lifetime [Years] | 2 yr |
| Battery qty | 2 |
| Battery type | 2 x AA alkaline batteries |
| Battery type or Name | Alkaline AA (LR6/ZR6) |
| Category name | Digital RF Thermostat |
| CE evaluated | Yes |
| China RoHS compliance | Out of scope |
| Colour | White RAL 9010 |
| Contains batteries | Yes |
| Control pollution | Degree 2 |
| Control type | On/Off modulating control |
| Depth [mm] | 30 mm |
| Description | RET2001RF + RX1-S, Battery powered RF digital room electronic thermostat and mains powered single channel RF receiver |
| Design standard | EN 60730-2-9 |
| EEE category | 5 small equipment (any external dimension < 50 cm) |
| Frost protection | Yes |
| Height [mm] | 86 mm |
| In scope of WEEE | Yes |
| Installation | 3 Wire |
| Material | ABS+PC, non-flammable |
| Modulating Control | Yes |
| Number of channels | 1 |
| On/Off control | Yes |
| On/off modulating control | Yes |
| Output relay rating inductive [A] | 1 A |
| Output relay rating resistive [A] | 3 A |
| Product description | RET2001RF + RX1-S V2 |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| RF frequency [MHz] | 433.92 MHz |
| RF range [m] | 30 m |
| SCIP dossier no. | 1076e053-04a2-4646-987d-f4036bc6aef1 |
| SCIP dossier product name | Electronic programmable room thermostat |
| Status indicator | Yes |
| Supply Type | Batteries for thermostat + 230Vac for receiver |
| Temperature limiter [°C] [Max] | 35 °C |
| Temperature limiter [°C] [Min] | 5 °C |
| UNSPSC CODE | 41112209 |
| Warranty [Year] | 5 |
